Description

Expand your Existing Central Ducted System

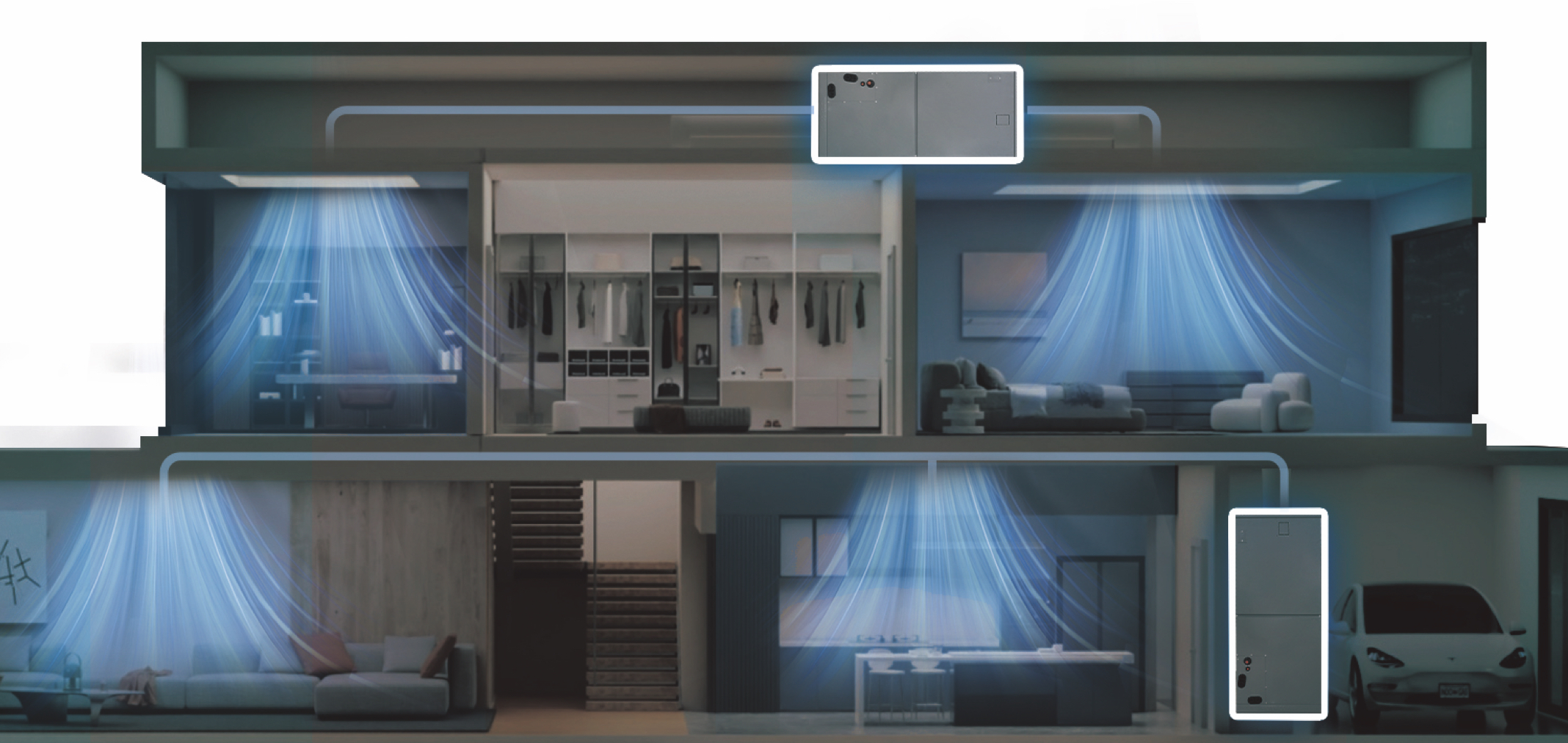

Incorporating an AHU into the multi-zone system makes the system applicable to wider scenarios and conditions, allowing homeowners to keep their ducted system and add ductless units for additional climate control.

AHU + DUCTLESS

AHU + AHU

DUCTLESS

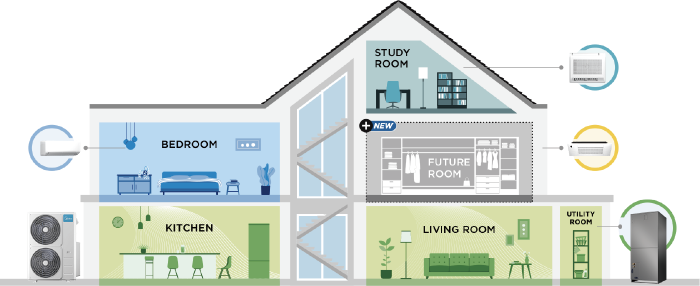

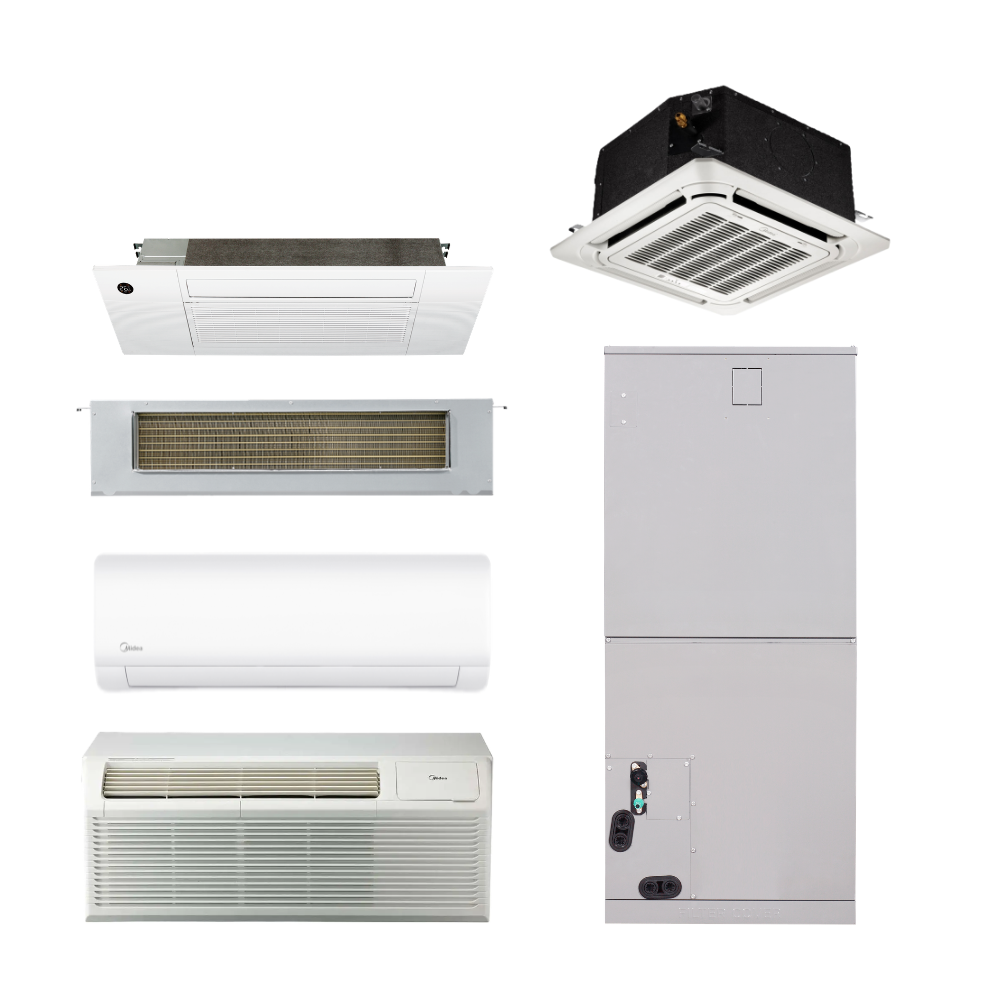

The system can add up to 4 ductless units to the current ducted air handler using the same outdoor unit. This can cover areas that are hard to heat or cool, occupied less often, or part of an renovation. The EVOX multi-zone heat pump system is a great solution for custom heating and cooling needs. No need to change a homeowner’s HVAC habits. This large capacity system not only lets users install up to a 3-ton AHU, but also allows users to put two AHUs on one heat pump in a residential multi-zone application. For the most convenient installation and flexible home comfort management, we offer various types of ductless indoor units tailored to meet the unique comfort needs of different rooms.

Product Brochure: Multi zone

Installation Manual (Mid Tier – Energy Star)
MO3EX-MO6EX.pdf

Installation Manual (High Tier – Extreme)
MO3HX-MO6HX.pdf

Submittals:

Extreme Heat Outdoor + Slim Duct Indoor

MO3HX-H18B-2A , MO4HX-H27B-2A , MO5HX-H36B-2A , MO6HX-H48B-2A , MO6HX-H60B-2A

Extreme Heat Outdoor + All other Indoors

MO3HX-H18B-2A , MO4HX-H27B-2A , MO5HX-H36B-2A , MO6HX-H48B-2A , MO6HX-H60B-2A

Regular Heat Outdoor + Slim Duct Indoor

MO3EX-H18B-2A , MO4EX-H27B-2A , MO5EX-H36B-2A , MO6EX-H48B-2A , MO6EX-H60B-2A

Regular Heat Outdoor + All other Indoors

MO3EX-H18B-2A , MO4EX-H27B-2A , MO5EX-H36B-2A , MO6EX-H48B-2A , MO6EX-H60B-2A

NAHVAC is a wholesale distributor in Canada, and these units are typically sold through HVAC wholesalers and installed by licensed contractors. If you’d like assistance finding a local distributor in Western Canada or arranging a purchase, please fill out the information below and we’ll connect you with the right partner.
